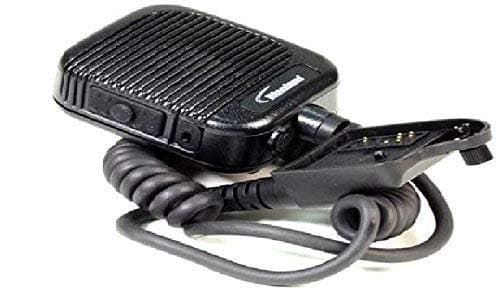

Lapel Mic for Harris M/A-Com Portable Series Radios

Description

Remote Speaker Microphone - Submersible Public Safety Grade fully waterproof/Submersible Mil Spec 810F certified speaker microphone with volume control and 3.5mm accessory jack. Compatible withHarris / M/A-Com / Tyco:P5300, P5400, P7300 XG-75 series radio AVAILABLE FEATURES -Emergency Button - High/Low Volume - Antenna Jack - 2.5mm, 3.5mm or 3.5mm threaded audio jack CABLING - Jacket: 5.5 Polyurethane, Kevlar Reinforced MECHANICAL - Axial Pull at Speaker Mic Head: 50lbs ENVIRONMENTAL - RoHS Compliant - Kevlar Reinforced Professional Grade - MILSPEC 810F SPEAKER - Transducer: Moving coil dynamic speaker - Impedance: 8;15% @1KHz - Sensitivity: 120 dB;10%@1KHz - Resonance: freq (F0) 400HZ;20% - Frequency: response F0~9KHz - Rated input power: 0.5W - Maximum input power: 1W MICROPHONE -Type: Noise Cancelling (available without) - Transducer: Electret condenser microphone - Sensitivity: -34;2dB@1KHz 2.2K 3V 0dB=1v/pa - Impedance: Max:2.2k @1KHz - Directivity: Omni-directional - Frequency: 100Hz;16000Hz - Max operation voltage: 10V - Standard operation voltage: 3V - Current consumption Max: 0.5mA - S/N ratio Min: -34dB @1KHz CERTIFIED MIL-STD-810F - Low Pressure Altitude (MIL-STD-810F, Proc. 500.4) - High Temperature Storage, Cyclic (MIL-STD-810F, Method 501.4) - High Temperature Operation, Cyclic (MIL-STD-810F, Method 501.4) - Low Temperature - Storage (MIL-STD-810F, Method 502.4) - Low Temperature - Operation (MIL-STD-810F, Method 502.4) - Temperature Shock (MIL-STD-810F, Method 503.4) - Solar Radiation (MIL-STD-810F, Method 505.4) - Wind Driven Rain (MIL-STD-810F, Method 506.4) - Humidity (MIL-STD-810F, Method 507.4) - Salt Fog (MIL-STD-810F, Method 509.4) - Dust Robustness (MIL-STD-810F, Method 510.4) - Humidity (MIL-STD-810F, Method 507.4) - Salt Fog (MIL-STD-810F, Method 509.4) - Random Vibration (MIL-STD-810F, Method 514.5) - Mechanical Shock Exposure (MIL-STD-810F, Method 516.5) - Shock-Transit Drop (MIL-STD-810F, Method 516.5)
