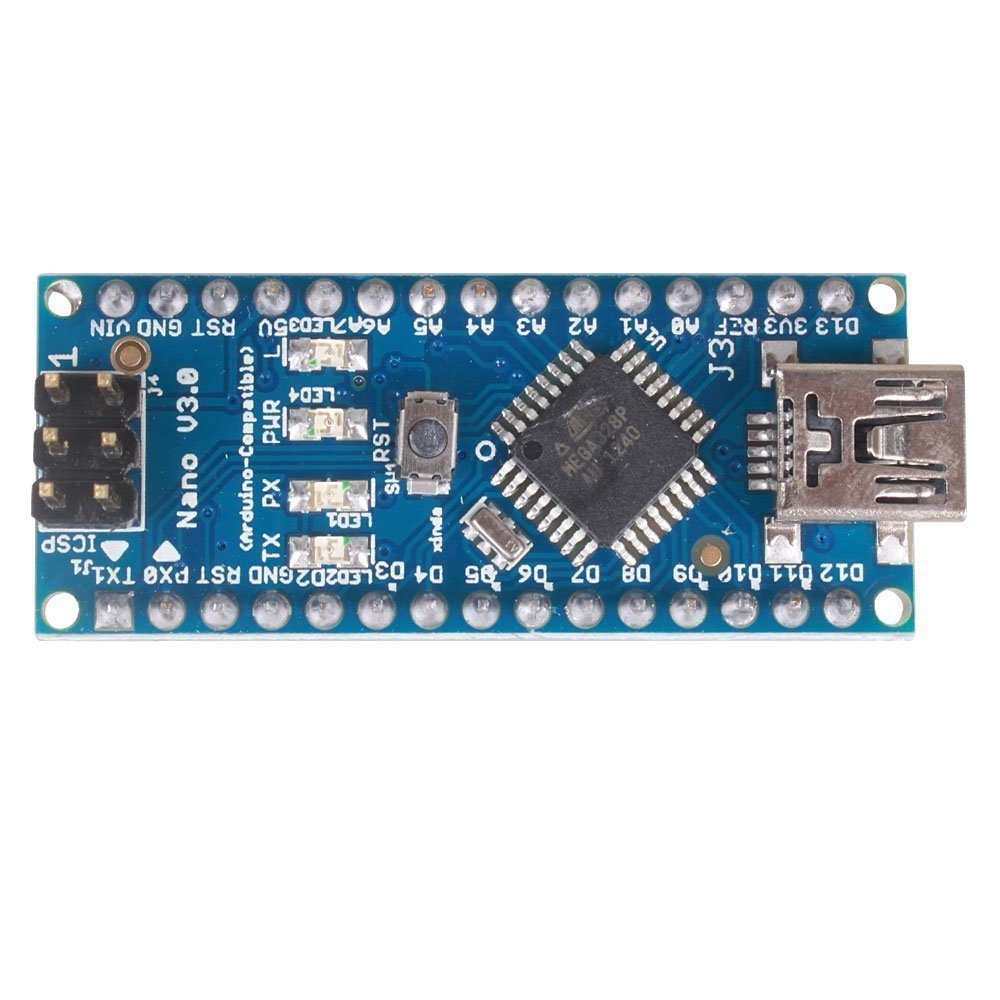

It is a smallest, complete, and breadboard friendly. It has everything that Diecimila/Duemilanove has (electrically) with more analog input pins and onboard +5V AREF jumper. Physically, it is missing power jack. The Nano is automatically sense and switch to the higher potential source of power so there is no need for the power select jumper. Nano's got the breadboard-ability of the Boarduino and the Mini+USB with smaller footprint than either, so users have more breadboard space. It's got a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one top, power and ground on the other). This new version 3.0 comes with ATMEGA328 which offer more programming and data memory space. It is two layers. That make it easier to hack and more affordable. You end up paying less with Nano than Mini and USB combined!
Specifications:
Microcontroller Atmel ATmega328
Operating Voltage (logic level) 5 V
Input Voltage (recommended) 7-12 V
Input Voltage (limits) 6-20 V
Digital I/O Pins 14 (of which 6 provide PWM output) Analog
Input Pins 8 DC Current per
I/O Pin 40 mA
Flash Memory 32 KB (of which 2KB used by bootloader) SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz

Dimensions 0.70" x 1.70".

including:

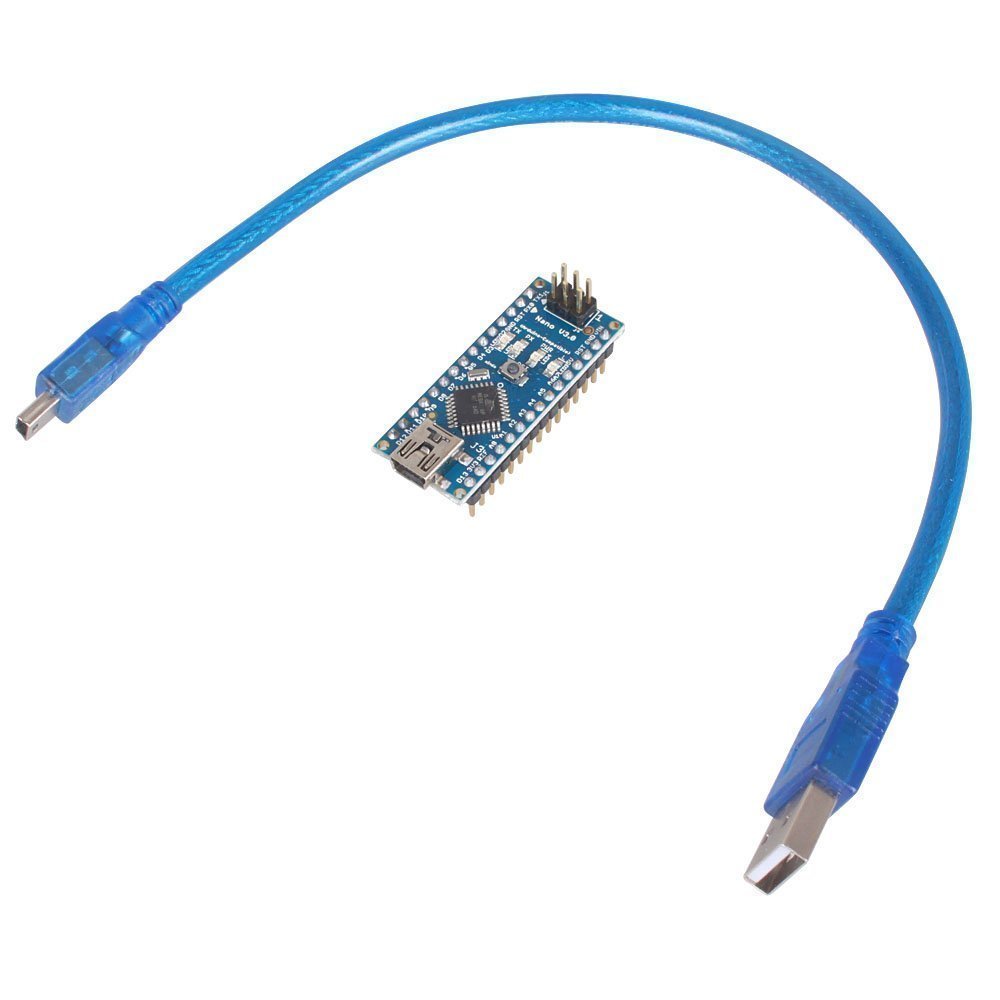

1*Mini Nano V3.0

1*USB Cable

1*Greeting card

If any questions, please do not hesitate to contact us and we will try our best to help you !

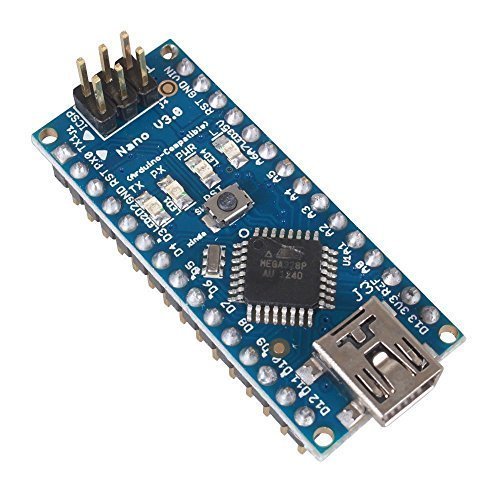

Boundto Mini Nano V3.0 Atmega328p Board for Arduino IDE (Arduino-compatible) + Free USB Cable compatible with win7 win8
