TinySA Spectrum Analyzer, Antenna Analyzer Ham Radio, Handheld MF/HF/VHF UHF, RF Explorer Audio Spectrum Analyzer

5.0

0 ratings

Product ID: 266193138

Brand:

twsoul

Add to cart65,499 SLRs

Spotted a better price elsewhere? Self ship it at cheapest rate!

Learn more

Easy Returns with desertcart PRO

30 day return window

Free replacements & exchanges

Hassle free one-click returns

Customer support

We’re available 24/7 to help you!

Live chat Email

About the item

Dual input and output: 0.1MHz-350MHz low-quality MF/HF/VHF input, 240MHz-960MHz high-quality lower UHF input. Band-pass filter with switchable resolution, suitable for the range between 2.6KHz and 640KHz.

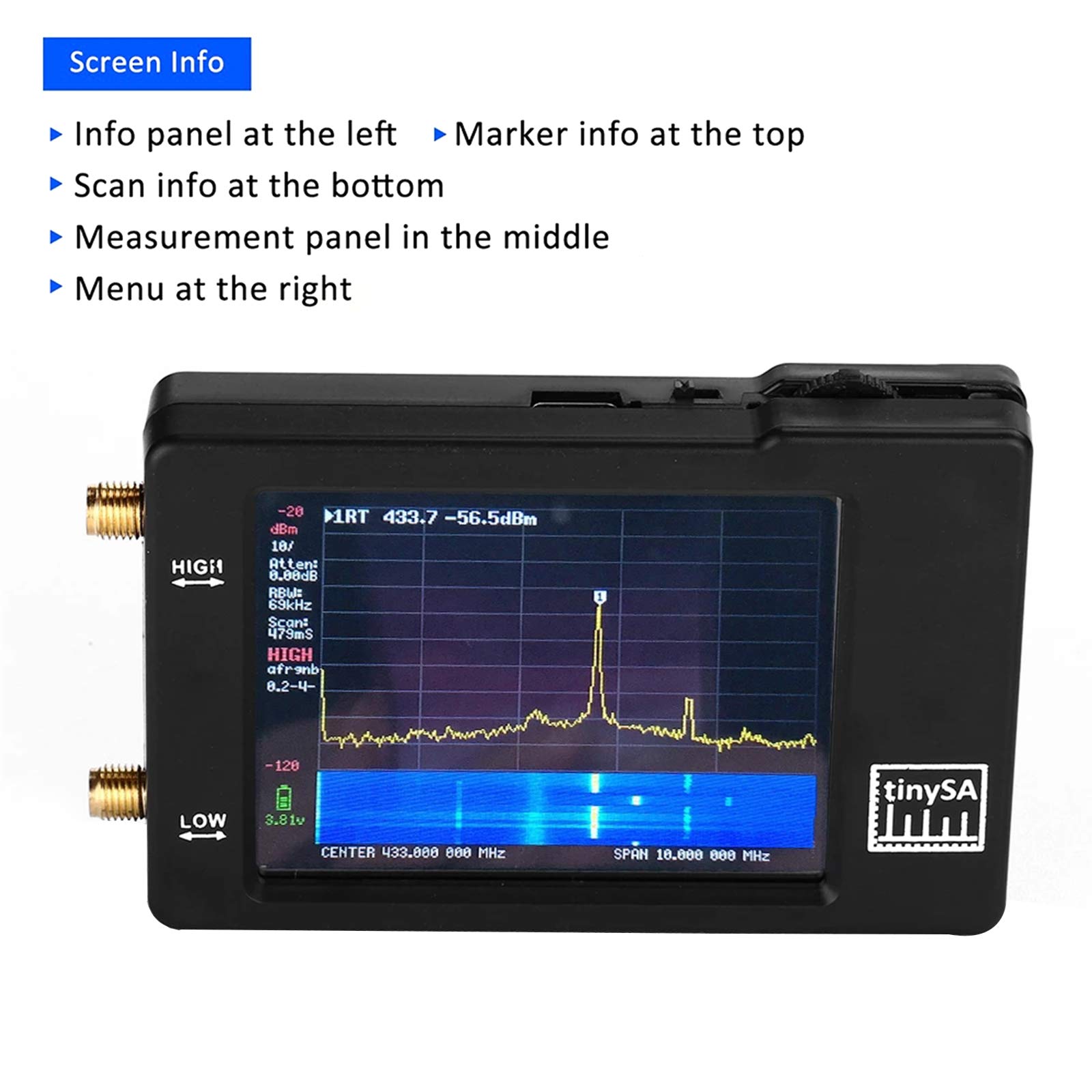

2.8 inch TFT color display: it can display 290 scanning points, covering the entire low or high frequency range. The input step attenuator for MF/HF/VHF input is 0dB to 31dB.
With signal generator function: when not used as a spectrum analyzer, it can be used as a signal generator, MF / HF / VHF sine wave output between 0.1MHz-350MHz, UHF square wave output between 240MHz-960MHz.

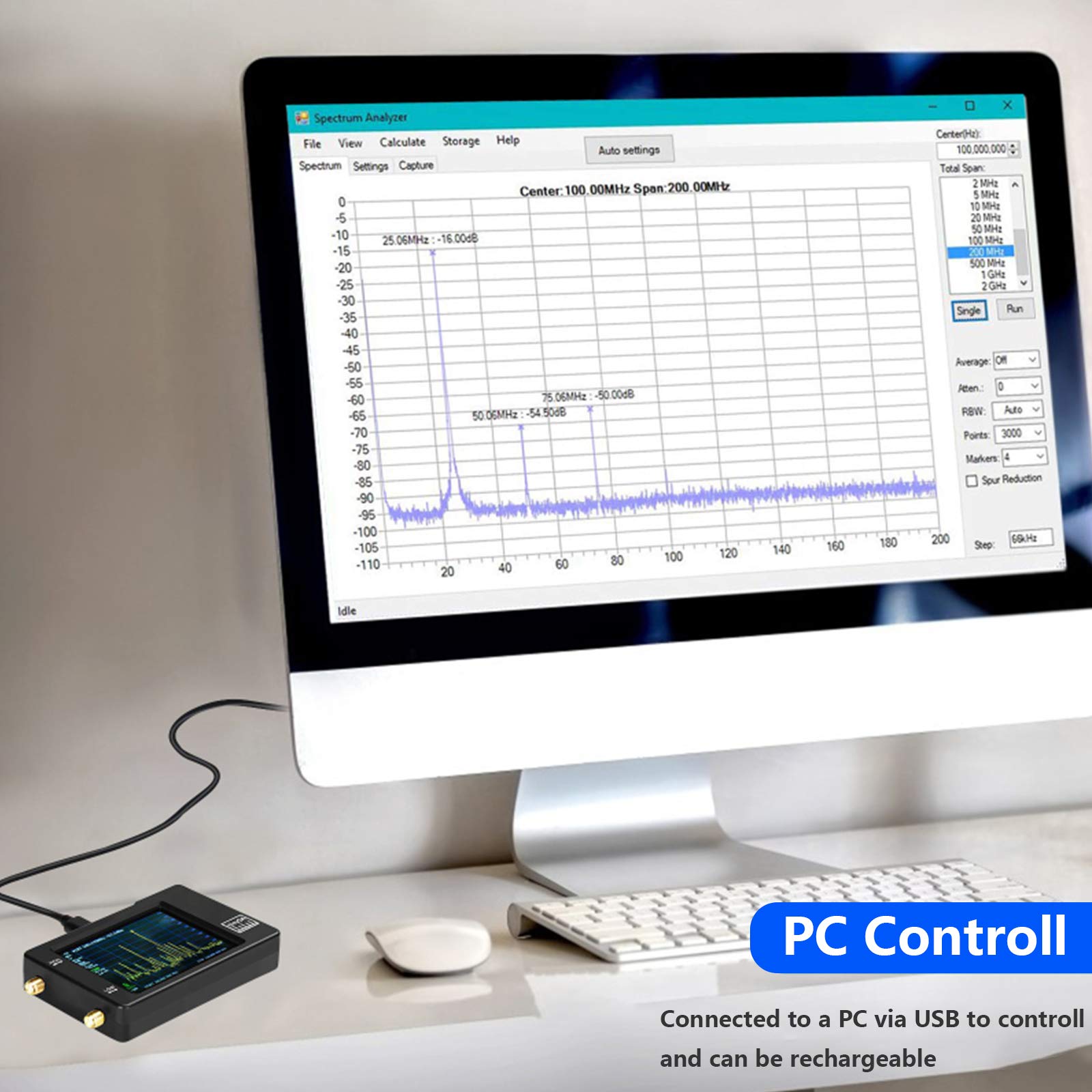

Connect to PC via USB, it becomes PC controlled spectrum analyzer..
Can be carried for at least 2 hours.

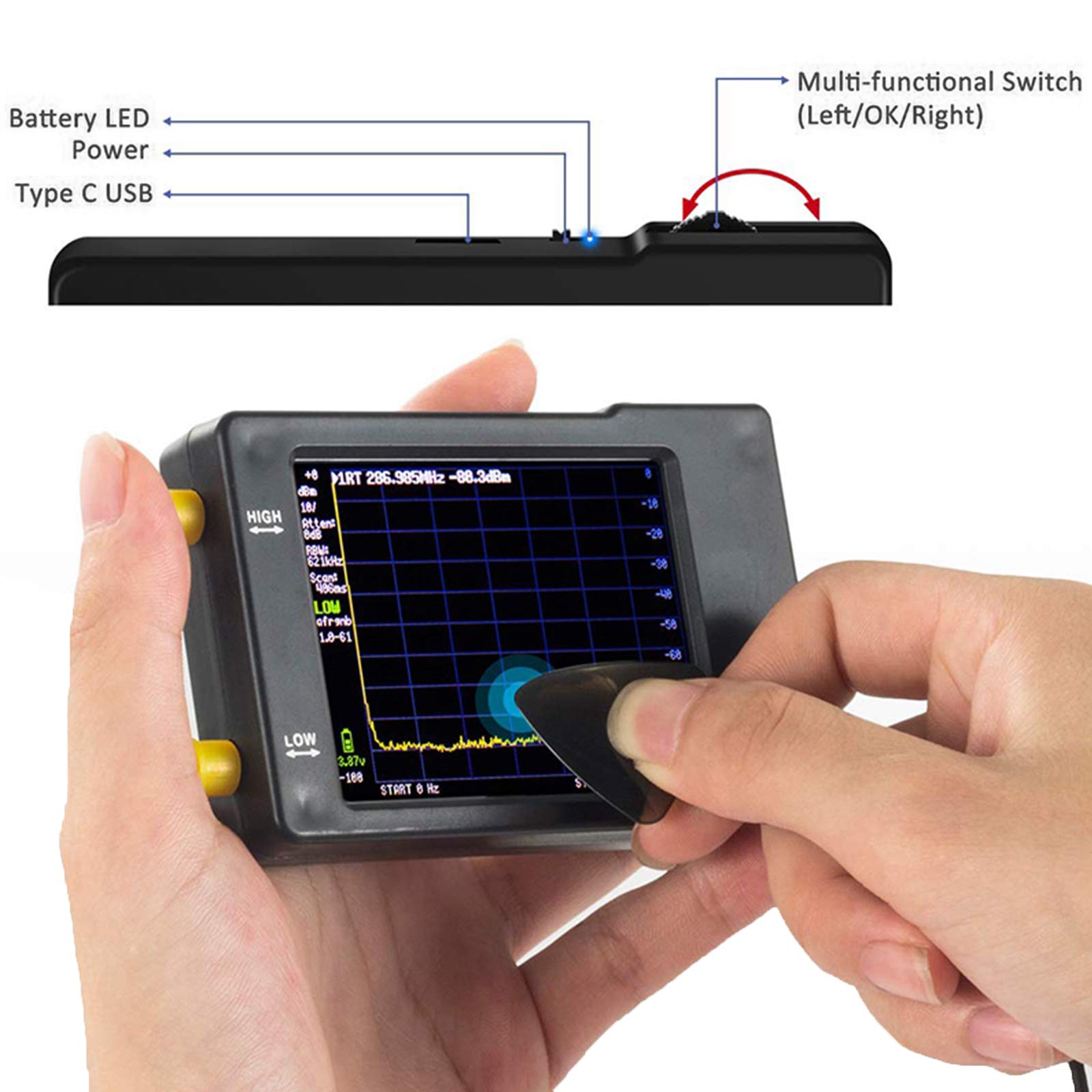

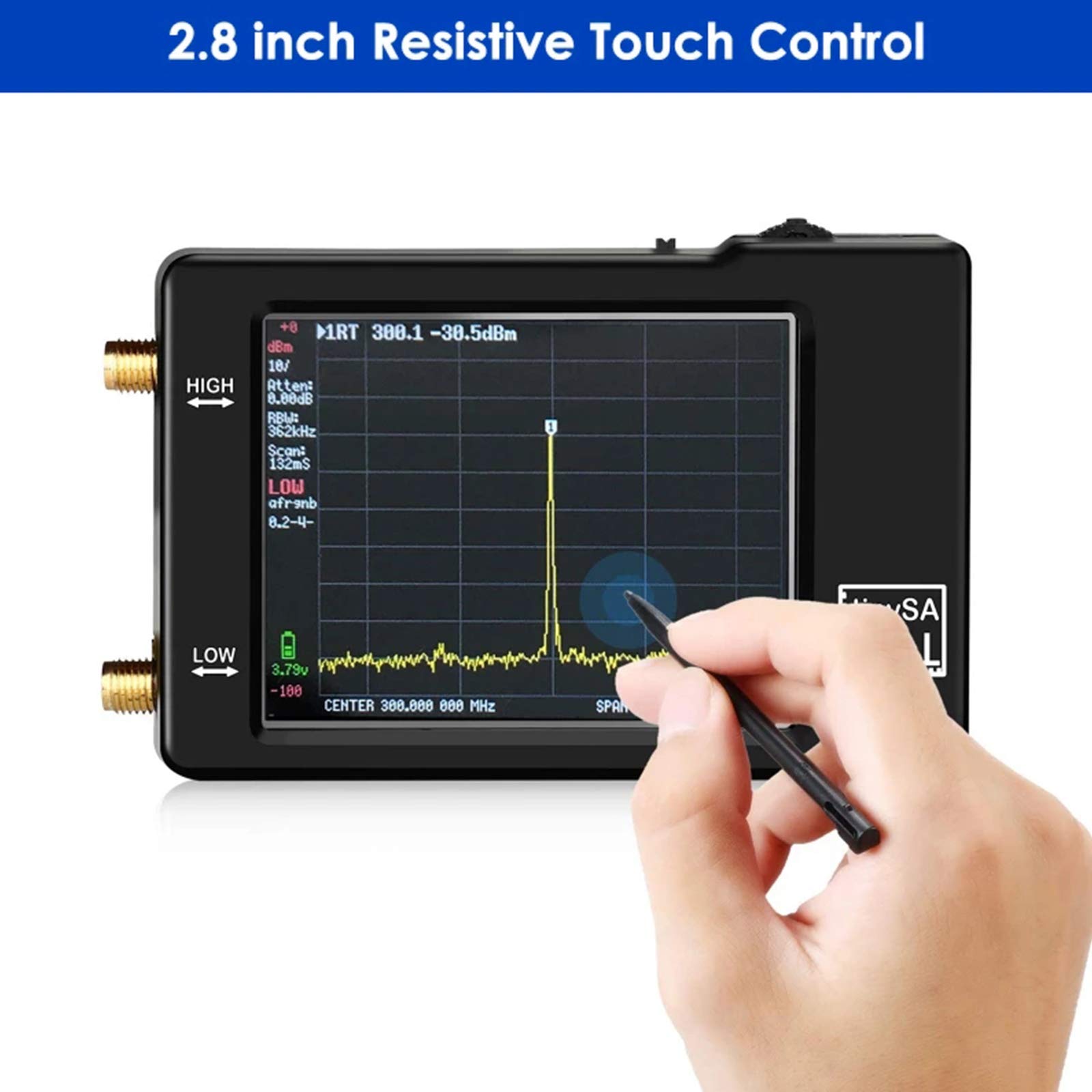

User interface: Display resolution 320*240 pixels Screen diagonal 2.8" 16 bits per RGB pixels Resistive touching control Jog switch control USB serial port control Optional TTL USART port (SW not yet implemented) on the internal PCB Linear power supply to refrain sw noise The input/output specification of the tinySA is split over the 4 modes. Low input mode spec: Input frequency range from 100KHz to 350MHz. Input impedance 50 ohm when input attenuation set to 10dB or more. Selectable manual and automatic input attenuation between 0dB and 31dB in 1dB steps. Absolute maximum input level without attenuation of +10dBm. Absolute maximum input power with 30dB attenuation of +20dBm for short period. Input intercept point of third order modulation products (IIP3) with 0dB attenuation of +15dBm. 1dB compression point at +2dBm with 0dB attenuation. Power detector resolution of 0.5dB and linearity ver-sus frequency of +/-1dB. Absolute power level accuracy after power level calibration of +/-1dB. Lowest discernible signal using a resolution bandwidth of 30KHz of -102dBm. Frequency accuracy equal to the selected resolution bandwidth. Phase noise of -90dB/Hz at 100KHz offset and -115dB/Hz at 1MHz offset. Spur free dynamic range when using a 30KHz resolution bandwidth of 70dB. Manually selectable resolution filters of 3, 10, 30, 100, 300, 600KHz. Automatic selection of one of the 57 resolution filters. On screen resolution of 51, 101, 145 or 290 measurement points. Scanning speed of over 1000 points/second using largest resolution filters. Automatic optimization of actual scanning points to ensure coverage of the whole scan range regardless of the chosen resolution bandwidth.
