Description
- 1 can detect flame or wavelength in the range of 760 nm to 1100 nm light source,lighter test flame distance is 80cm,the greater the flame,the farther the test distance.
- 2 detection angle of 60 degrees or so,the flame spectrum is particularly sensitive.
- 3 the sensitivity is adjustable (blue digital potentiometer adjustment).4 the comparator output direct trigger relay.
- 5 the size of the shape:50x26mm,thick 19mm,with a fixed bolt hole,easy to install.6 the output with a blue connector,wiring convenient.
- power supply voltage:5vdc.current:more than 150ma.load:10a 250v ac or 10a 30v dc.shipping list:flame sensor plus relay module 1

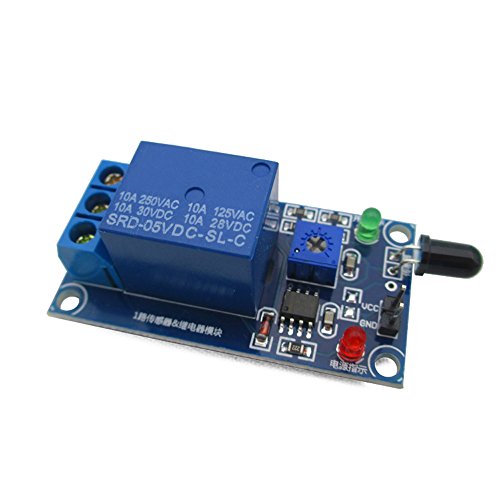

this is a flame sensor module.
