Fear:
- High sensitivity and accuracy, 4 object measurement mode
- Temperature range: -20℃～450℃ (4℉～842℉), wide field view of 50×63.4°

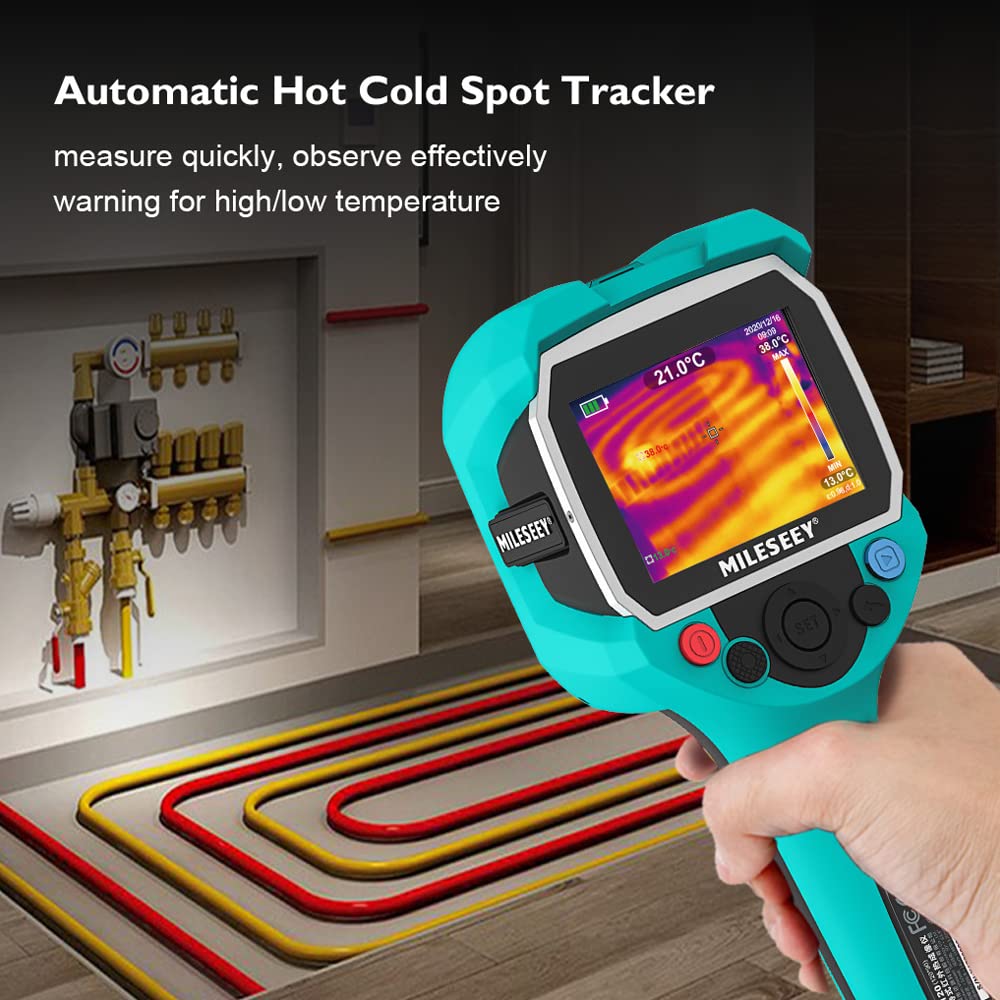

- Automatic hot / cold spot tracker, adjustable emisivity, 6 color palettes
- Connect to the computer via a USB cable, big memory with 2000 pictures
- Wide application: home check, security check, overhaul, search and rescue, and risk assessment,
traffic, farming, and electronic manufacturing, automotive Industry,chemical Industry, electrical industry.

Specification:
Model: TR120
Pixel: 10800（120*90）
Spectral response band: 8~14um
Field angle: 50°63.4°
Pixel size: 17um
Frame rate: ≤20Hz
Response rate: ＜60mk
Measuring range: -20℃~400℃
Temperature measurement accuracy ( - 20 ℃~0 ℃ ): ±5℃
Temperature measurement accuracy ( 0 ℃~100 ℃ ): ±3℃
Temperature measurement accuracy ( 100 ℃~120 ℃ ): ±5%
Optimum detection range: 0.5m~1.2m
Palette: Six
High and low temperature alarm: ✔

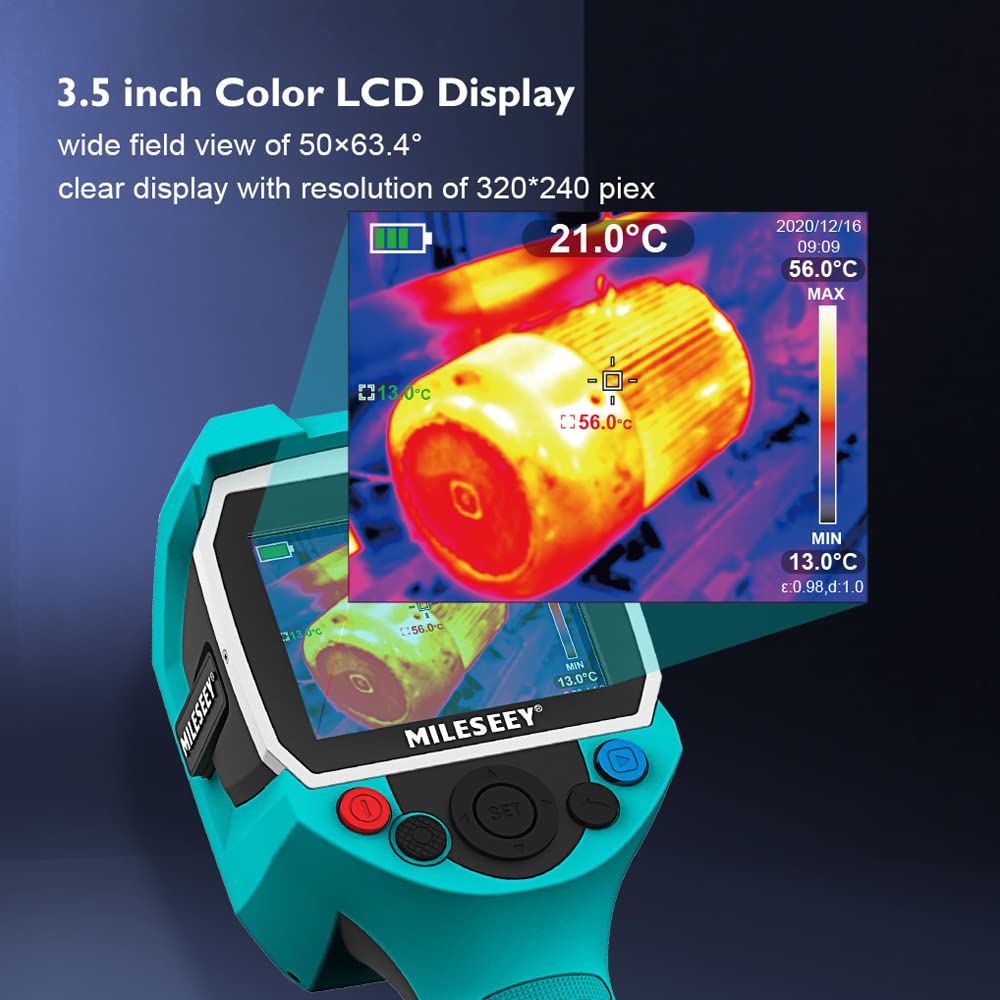

Screen size: 3.5 inches
Display resolution: 320*240
Visible light resolution: 300000 (640 * 480)
Storage: External 8G MicroSD card
Communication interface: USB 2.0（FS）

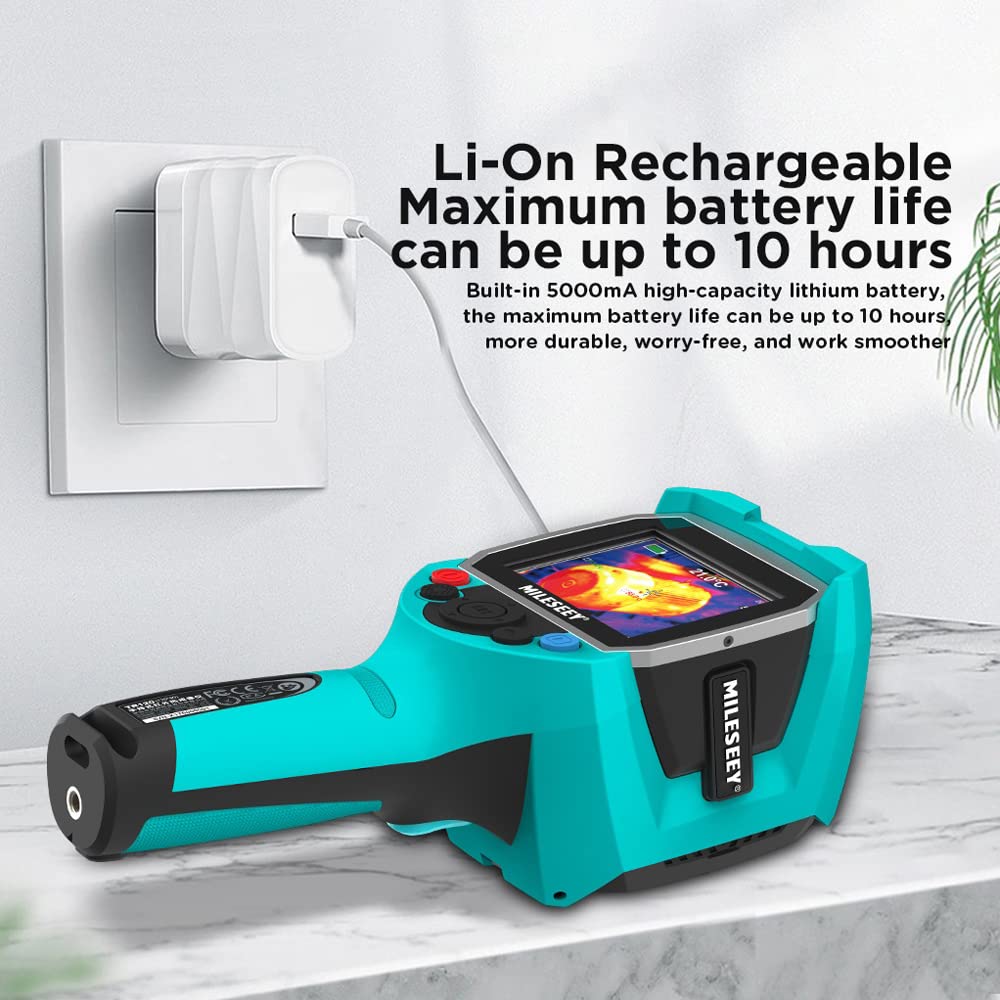

Power supply: Lithium battery/5000mAh/3.7V
LED lighting: High power white LED
Waterproof grade: IP65
Working temperature: -10℃~50℃
Storage temperature: -40℃~70℃
Fall prevention: 1.5m
Size (mm): 238*95*85
Weight(g): 540

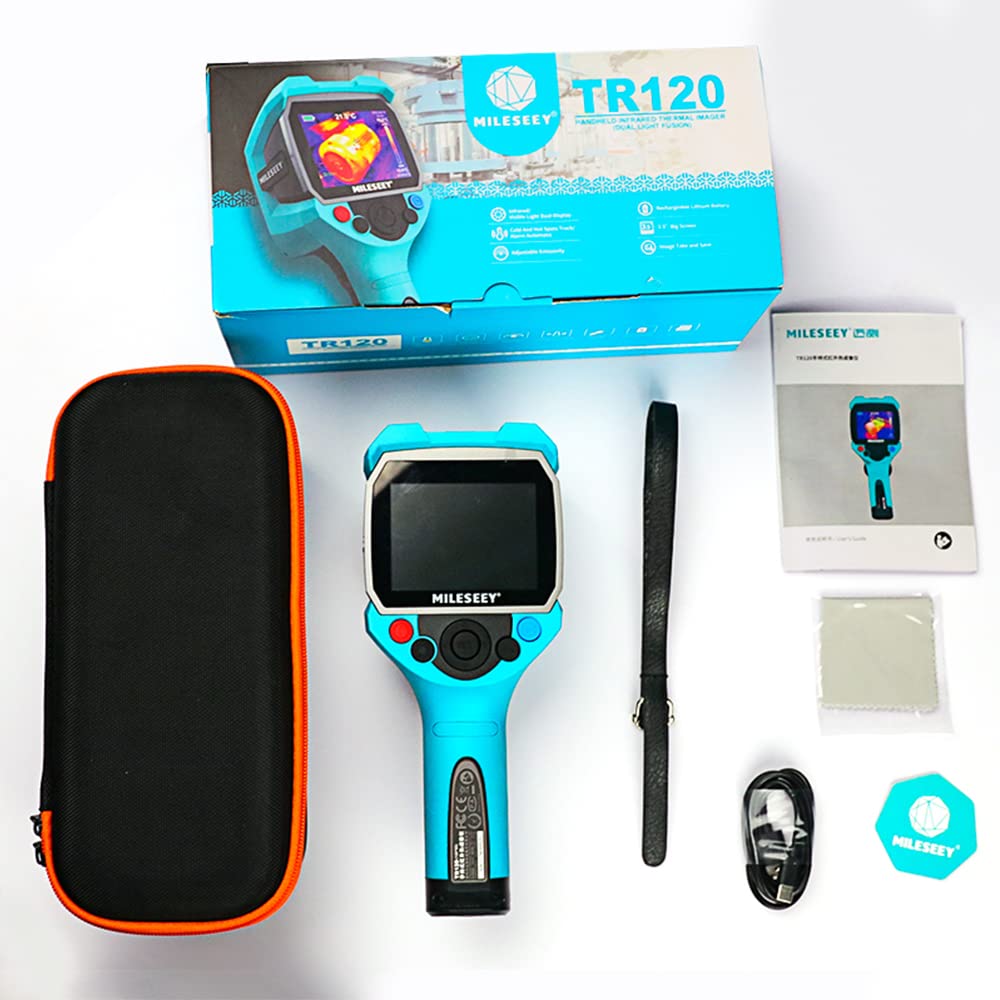

Packing List:
1 x Thermal camera
1 x Type-c USB cable
1 x Wristband
1 x User manual
1 x Suitcase
1 x Cleaning cloths

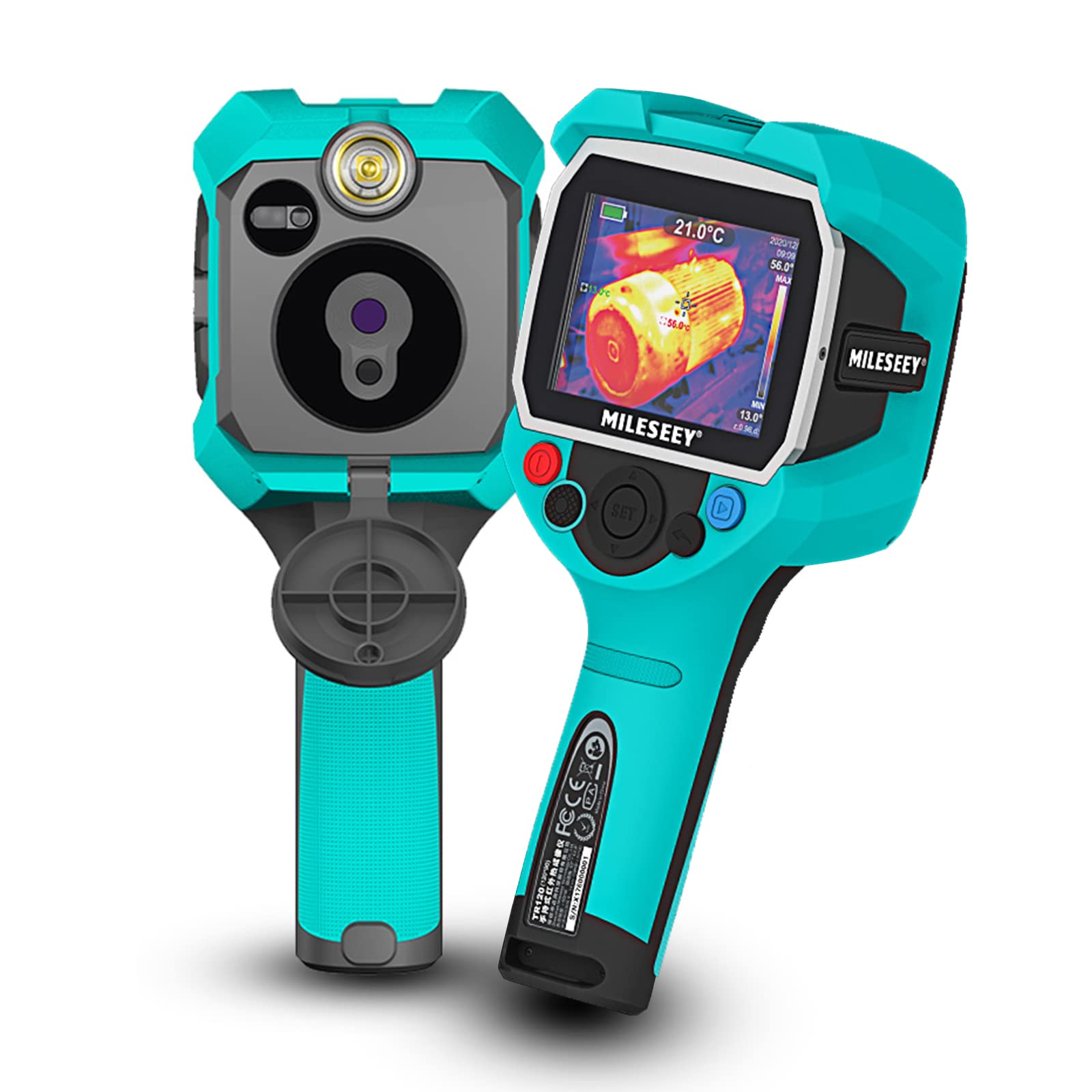

Thermal Camera 10800 Pixel, Handheld Dual Camera Infrared Thermal Imagers, 3.5 Inch LCD Display IP65 Waterproof Rechargeable 6 Palettes TR120 Thermal Imaging Camera with LED Light
