⚡ Elevate your control game with industrial-grade power and protection!

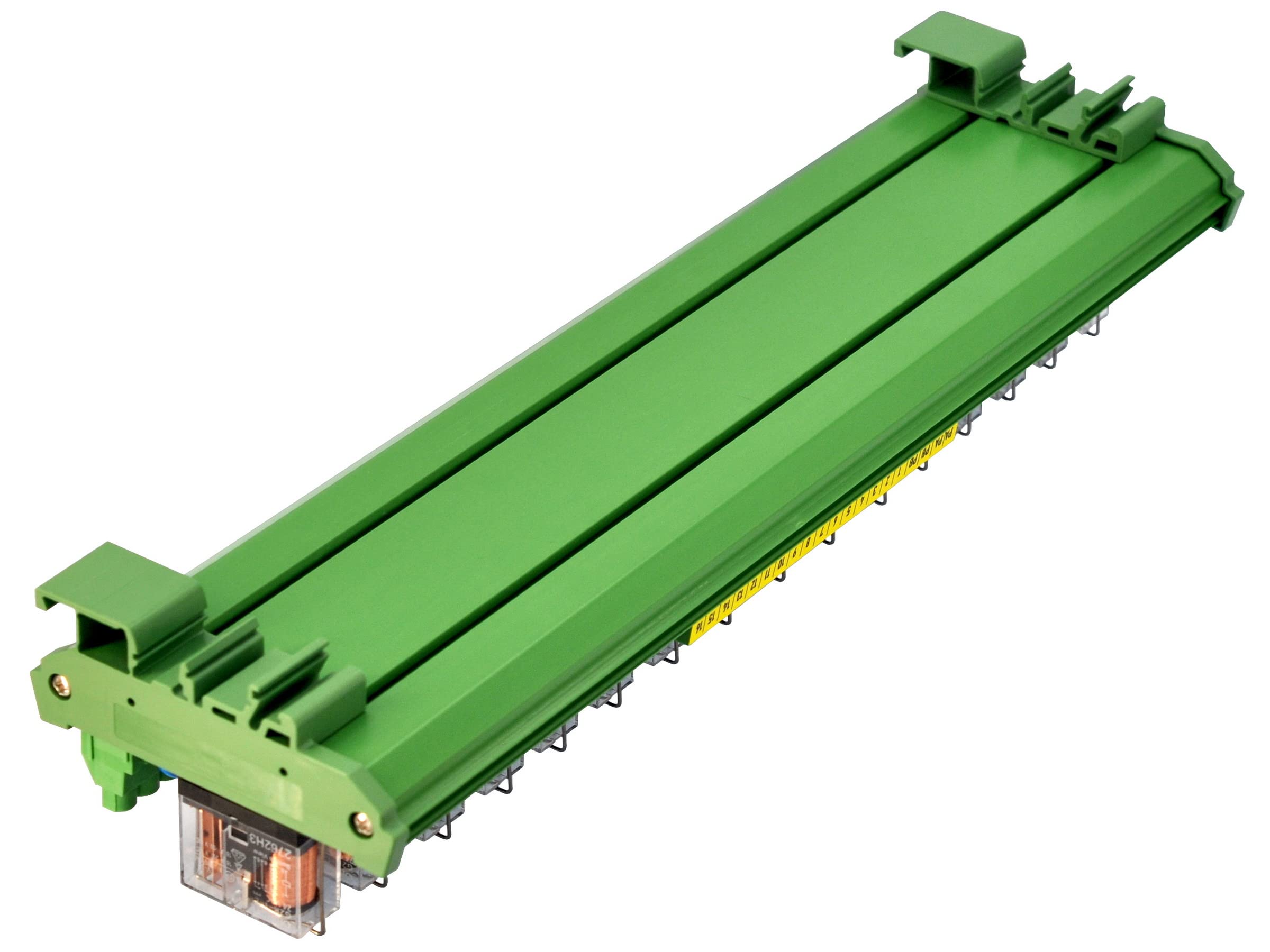

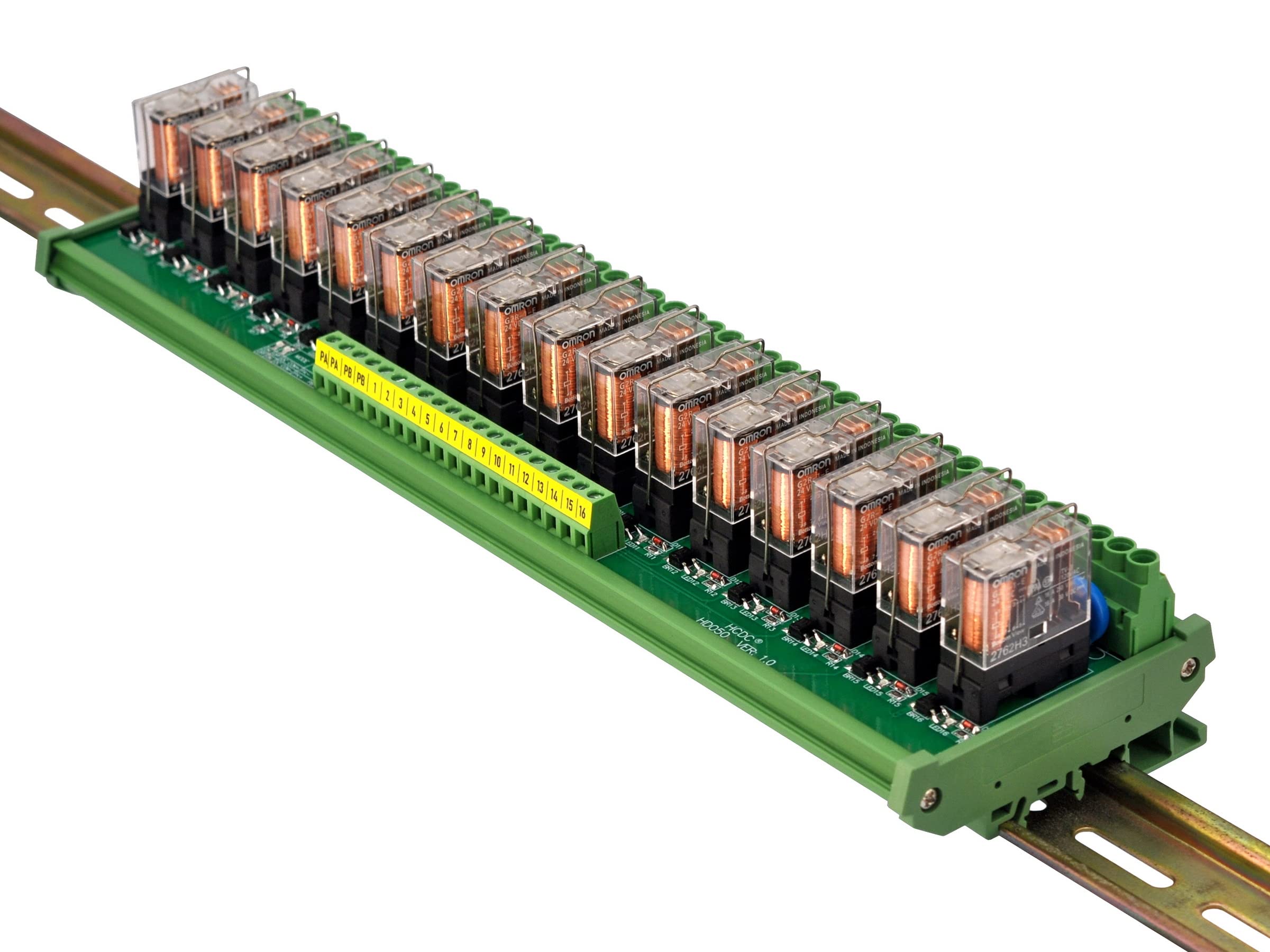

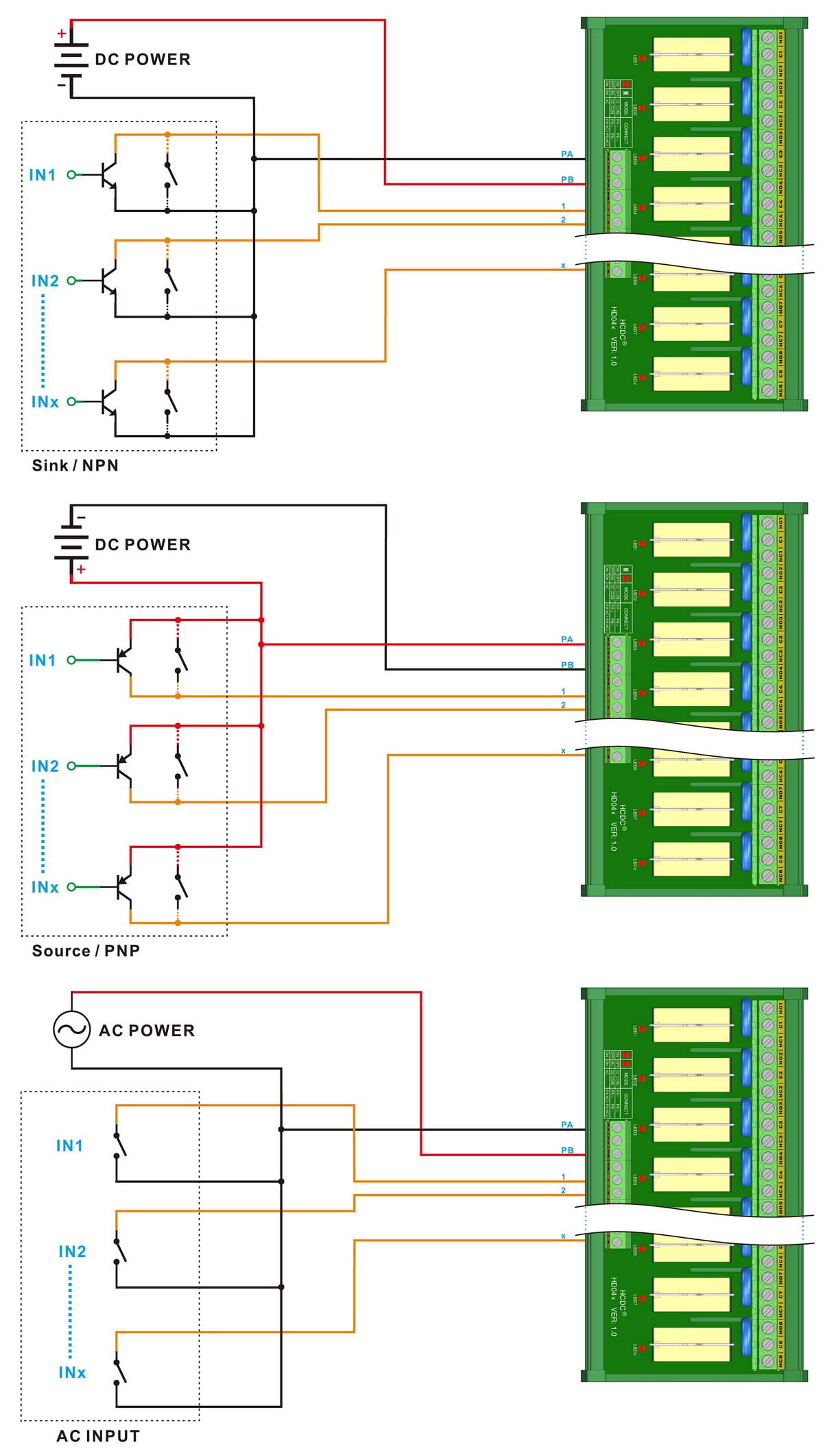

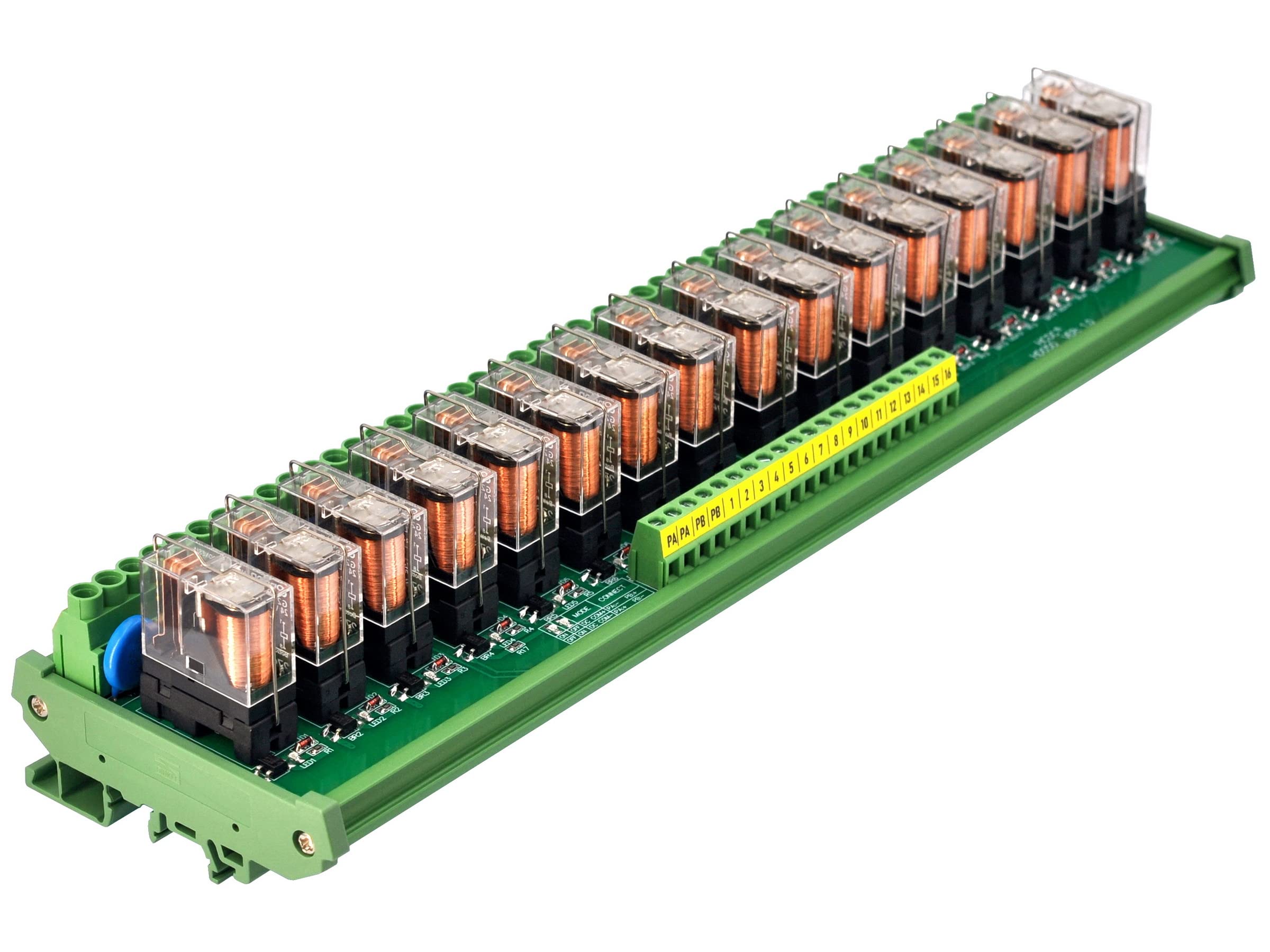

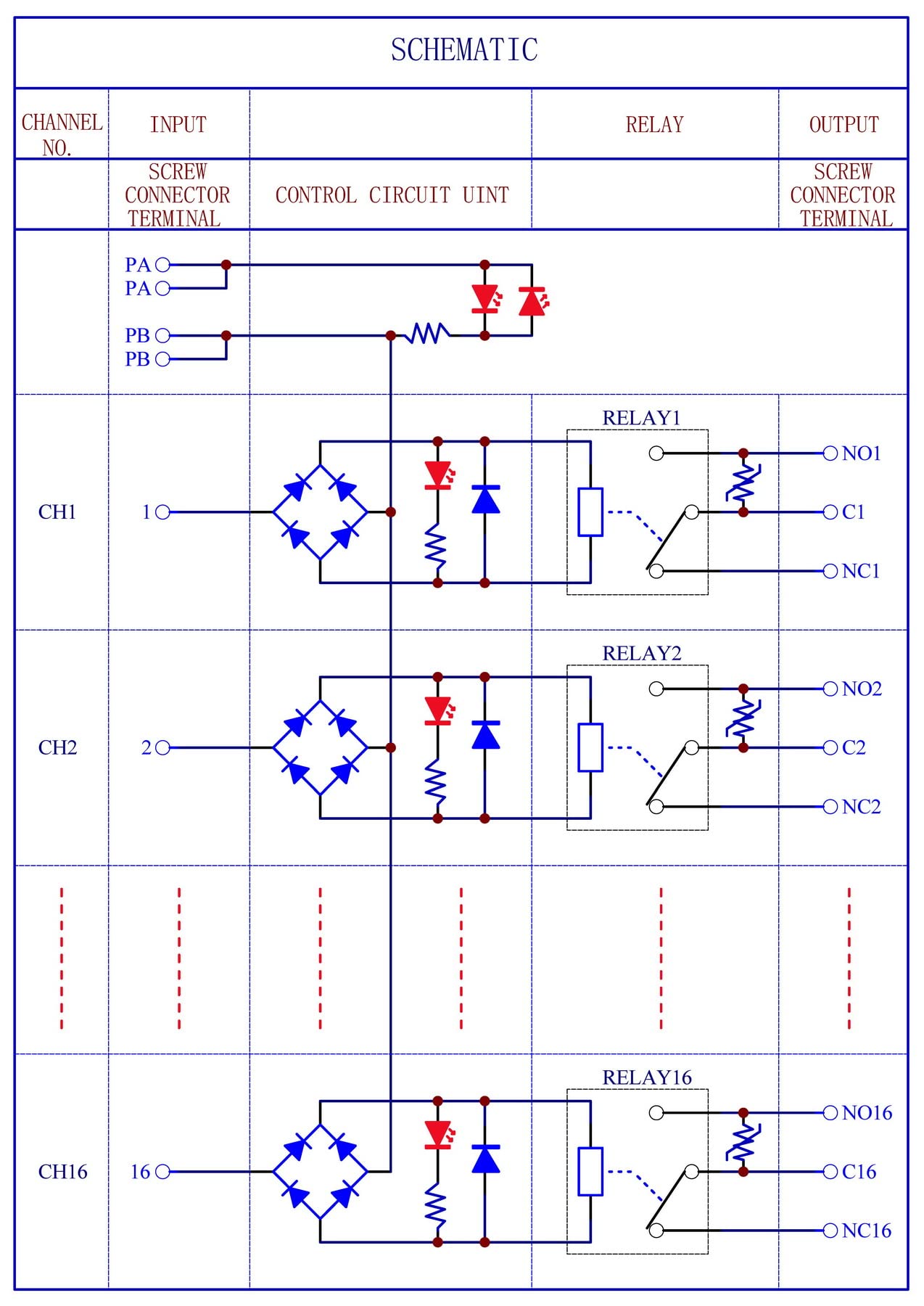

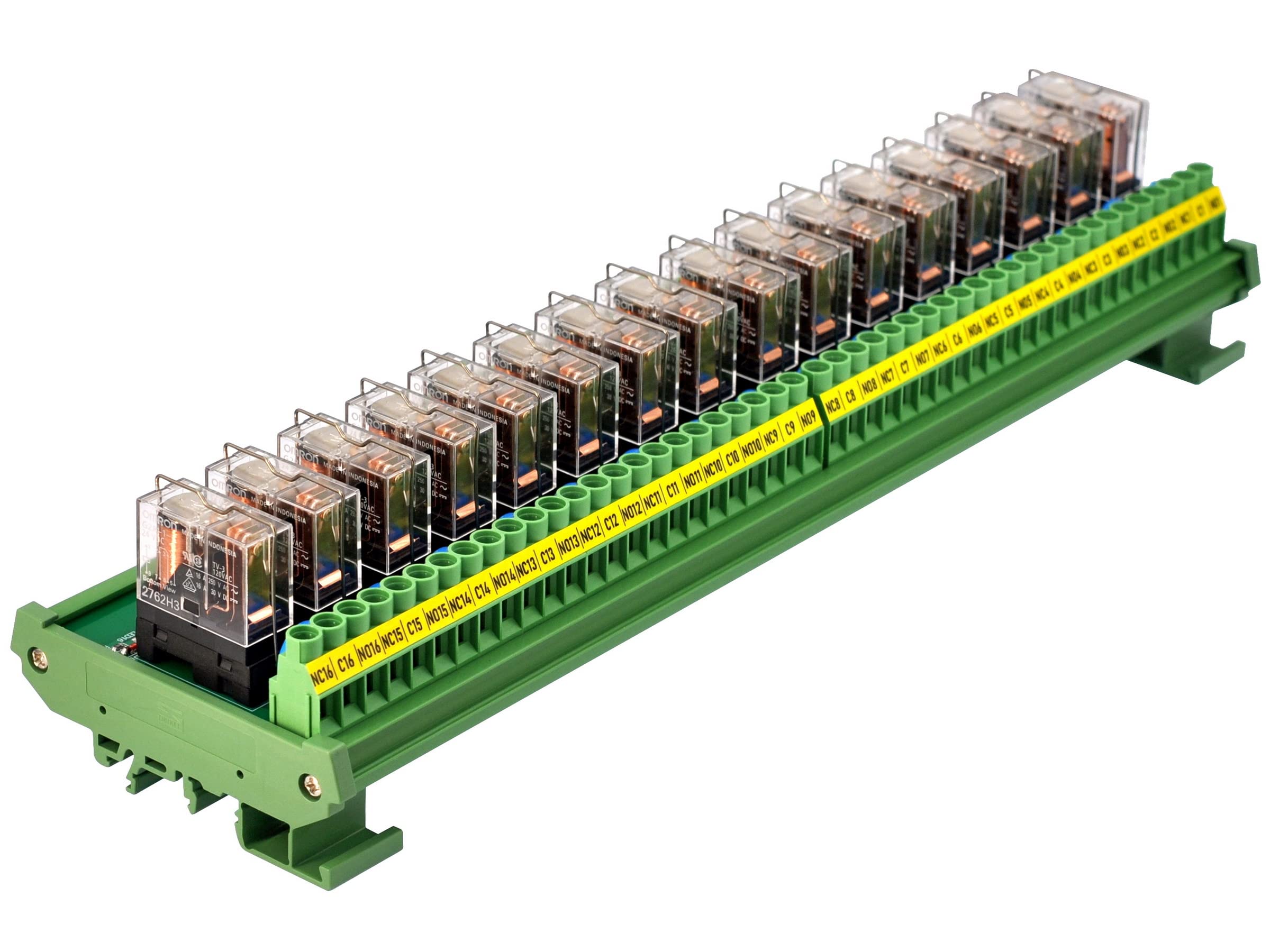

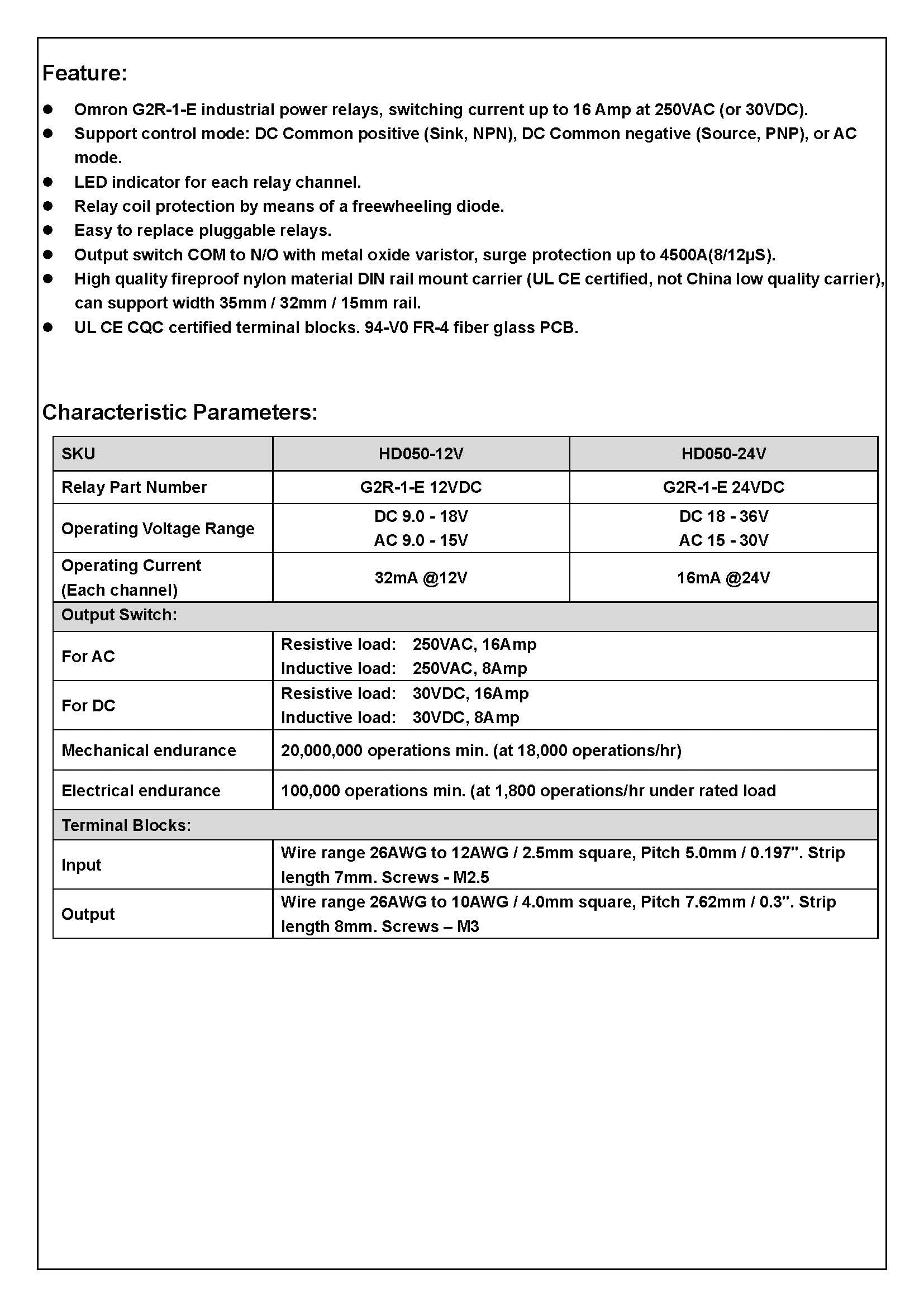

The AC/DC 24V Coil 16-SPDT Pluggable Power Relay Module delivers reliable switching of up to 16 Amps at 250VAC or 30VDC. Featuring versatile control modes (DC Sink, Source, AC), LED indicators, and surge protection up to 4500A, it’s built with UL CE certified fireproof nylon and DIN rail mounting for industrial-grade durability and easy maintenance.
| Connector Type | Screw |
| Contact Material | Silver Tin Oxide |
| Contact Type | Normally Open |
| Current Rating | 16 Amps |
| Mounting Type | DIN Rail Mount |
| Brand | HCDC |
| Operation Mode | Automatic |
| Coil Voltage | 24 Volts |
| Contact Current Rating | 16 Amps |
| Maximum Switching Current | 16 Amps |
| Minimum Switching Voltage | 24 Volts |
| Specification Met | Energy Rating |
| Manufacturer | Xiken Electronic Technology Co., Ltd. |
| Model number | HD050T-24V |
| Number of Memory Sticks | 1 |
| Item Weight | 885 g |

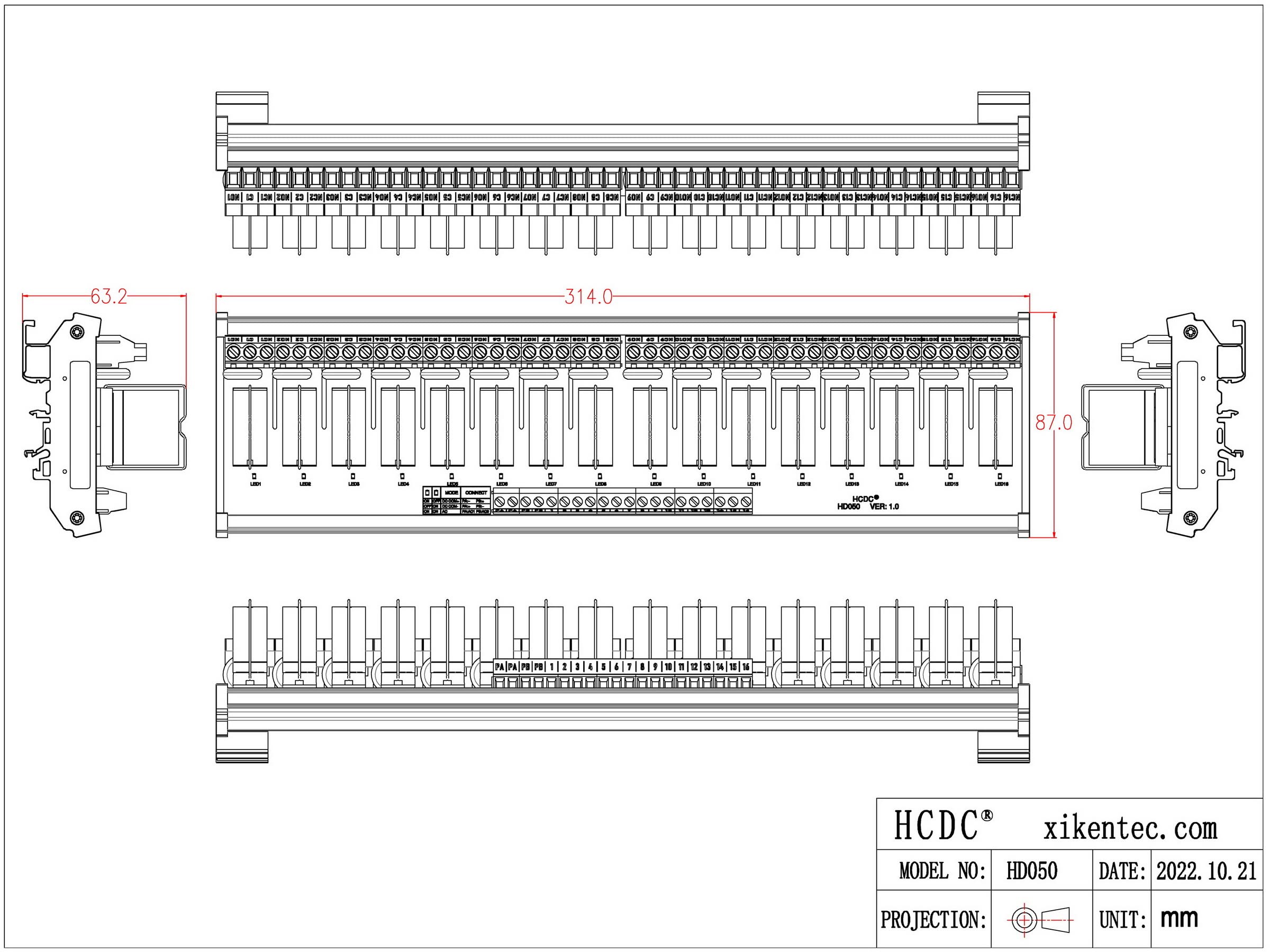

| Product Dimensions | 31.4 x 8.7 x 6.32 cm; 884.51 g |
| Item model number | HD050T-24V |
| Item Height | 6.3 Centimeters |
| Item Width | 8.7 Centimeters |
| Included Components | Power Relay Module |
| Are batteries included? | No |
